RIPPERS, BLADES & PIPE LAYERS
Select a machine below, or scroll down to view all.
Can be used as a single tine ripper or can lay pipe with the pipe layer fitted. Hardened steel cutting tooth is reversible, replacements are available.

Perfect for ripping hard ground, preparing for planting, also for use in wet ground to break up the surface to allow water to move through.

Break up hard, compacted soil quickly and easily, then level and contour the surface to create the desired effect.

The Rear Box Blade is ideal for levelling garden beds, clearing debris, preparing soil for seeding, backfilling trenches and levelling foundations.

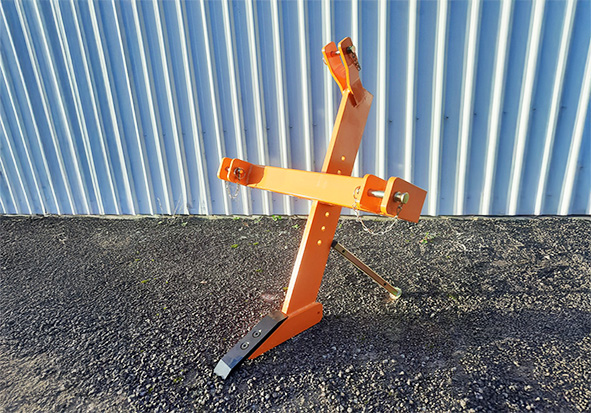

PIPE LAYER RIPPERS
This can be used as a single tine ripper or with the pipe layer fitted, can lay pipe up to 80mm in diameter. Hardened steel cutting tooth is reversible and replacements are available.
$695.00
HP Required: 20HP+
Maximum Pipe Diameter: 50mm
Weight: 45kg
Shank Width: 25mm
Plough Tip Width: 65mm
Maximum Ripping Depth: 602mm
Maximum Pipe Depth: 383mm
Linkage: Cat 1
Height Adjustments x 5
$845.00
HP Required: 40HP+
Maximum Pipe Diameter: 80mm
Weight: 90kg
Shank Width: 25mm
Plough Tip Width: 65mm
Maximum Ripping Depth: 792mm
Maximum Pipe Depth: 629mm
Linkage: Cat 1
Height Adjustments x 6
TINE RIPPERS
Perfect for ripping hard ground, preparing ground for planting, also for use in wet ground to break up the surface to allow water to move through.
$625.00
Power Required: 25HP+
Shank Width 25mm
Plough Tip Width: 65mm
Maximum Ripping Depth: 500mm
Linkage: Cat 1
Height Adjustments x 6
$675.00
Power Required: 25HP+
Shank Width: 25mm
Plough Tip Width: 65mm
Maximum Ripping Depth: 600mm
Linkage: Cat 1
Height Adjustments: x 6
$1,330.00
Power Required: 25 – 35HP
Linkage: Cat 1
Tine Width 43mm
Working Depth: 320-500mm
Tine Spacing 350mm
Height Adjustments x 3
$1,580.00
Power Required: 30+HP
Linkage Cat 1 and Cat 2
Tine Width 43mm
Working Depth: 270-500mm
Tine Spacing 350mm
Height Adjustments x 3
REAR GRADER BLADES WITH RIPPERS
Rear grader blades with rippers use ripper teeth to loosen and break up soil or other obstacles in the ground. Once the ground has been broken up, the blade can then be used to level and contour the surface. The blade can be adjusted up or down, left or right, and angled as needed to create the desired effect.
$1,790.00
Length 1220mm
Width 1200mm
Height 1000mm
Structure Weight 145kg
Working Width 1200mm
Rippers 5 Tynes
Power Required 15-28hp
*Actual colour orange. Picture is of a larger unit.
$1,900.00
Length 1517mm
Width 1500mm
Height 1060mm
Structure Weight 170kg
Working Width 1600mm
Rippers 6 Tynes
Power Required 20-35hp
*Actual colour orange
$2,199.00
Length 1517mm
Width 1800mm
Height 1060mm
Structure Weight 180kg
Working Width 1800mm
Rippers 7 Tynes
Power Required 25-50hp
*Actual colour orange. Picture is of a smaller unit.
REAR BOX BLADES WITH RIPPERS
Rear box blades are ideal for landscaping projects, including creating level garden beds, clearing debris, and preparing the ground for seeding or sodding. In construction, they can be used for backfilling trenches and levelling areas for foundations. They can effectively distribute material, fill in low spots, and create smooth and even surfaces.
$1,750.00
Working Width: 1200mm
Dimensions: 1225 x 642 x 975mm
Weight: 190kg
Tractor HP: 15-22
Hitch Type: Cat 1
Ripper Tynes: 4
* Actual colour orange
$1,990.00
Working Width: 1500mm
Dimensions: 1525 x 642 x 975mm
Weight: 250kg
Tractor HP: 24-40
Hitch Type: Cat 1
Ripper Tynes: 5
* Actual colour orange
Temporarily out of stock
Working Width: 1800mm
Dimensions: 1825 x 642 x 975mm
Weight: 310kg
Tractor HP: 30-50
Hitch Type: Cat 1
Ripper Tynes: 6
* Actual colour orange
